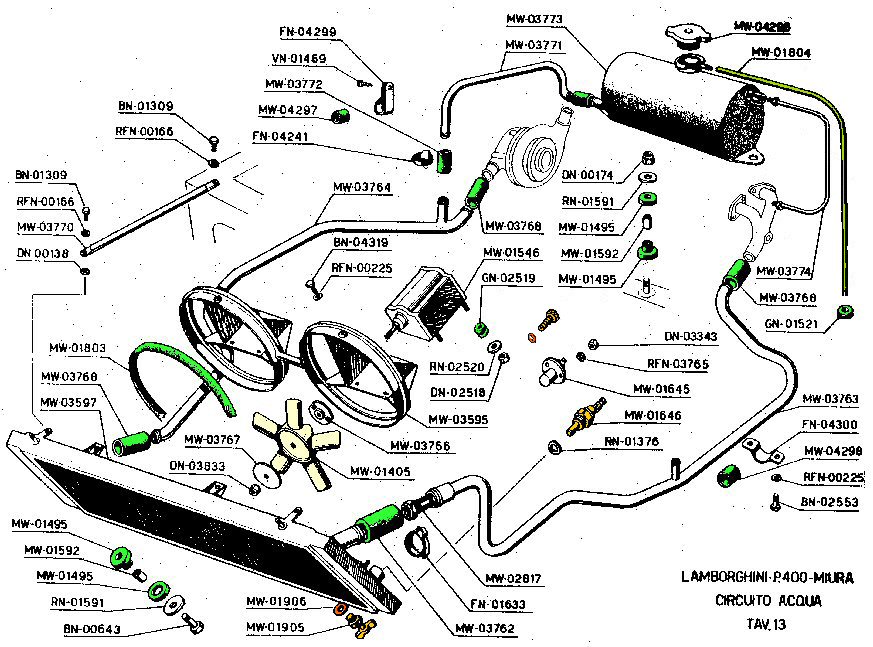

tav13

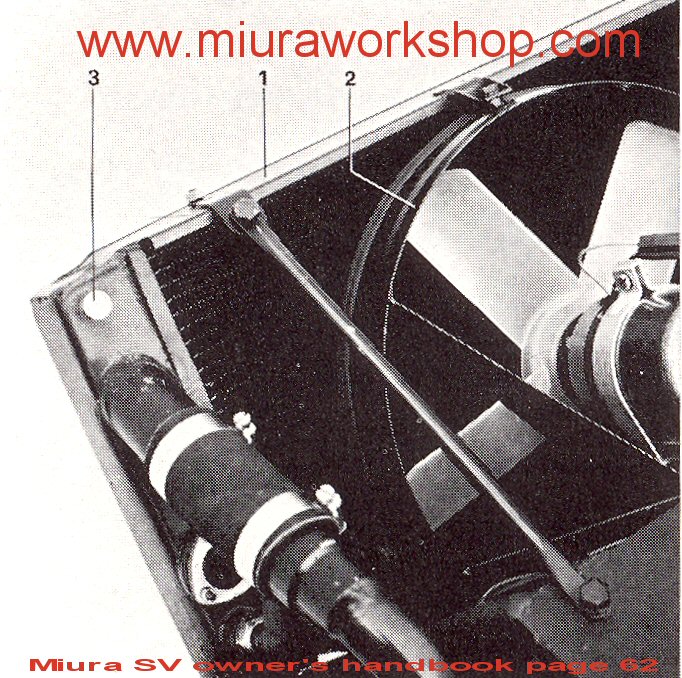

P400 cooling system

Description

Lamborghini part number

OEM Manufacture
part number

additional notes - clickable links

approx
cost

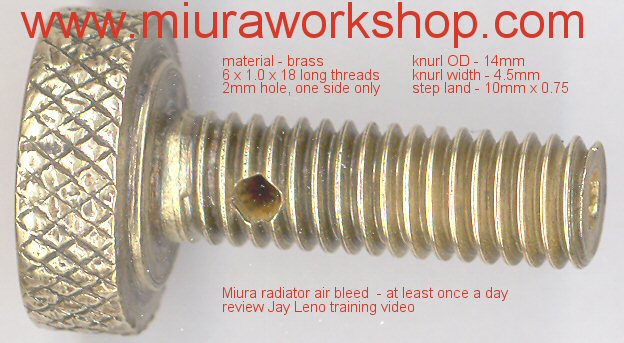

screw, thumb, radiator air bleed

not numbered

brass, knurled, bleed drilled, thumb screw

bleed air screw
bleed air photo

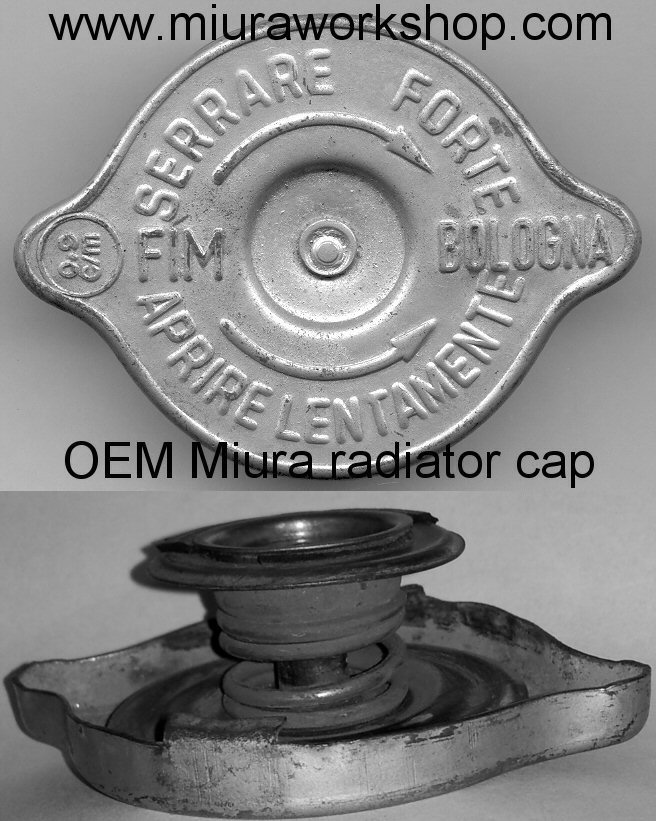

cap, radiator

MW04296 1704296

FIM, 0.9

radiator cap

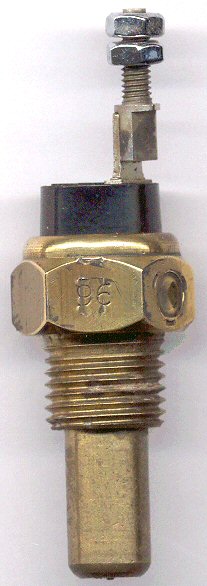

switch, temp gage warning light

MW-01646 1701646

Jaeger Prelac, made in France, A4, 96, Bte SGD6

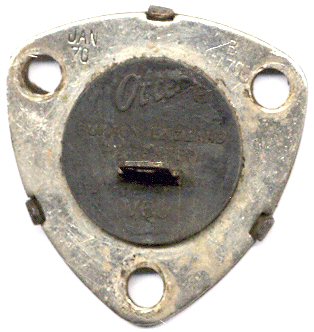

switch, fan auto ON thermo

MW-01645 1701645

Otter, Buxton England, V60, B, M70

motor, cooling fan

MW-01546 1701546

Lucas #78378D, type 3GM

Lucas	Lucas number
bolt, thru	54100606
cover and brg, comm end	745678
bracket, brg	54712325
dust cover, rubber boot	54713890
brush gear	54713564
brushes set	54713563
armature	54711120
field coils	54712959

1961-71 Jag XKE rad motor
exact same motor

fan, five blade Moplen 2ea

MW-01405 1701405

IN Moplen N MOD.DEP.

350, 400, Islero, Espada, Countach, Urraco

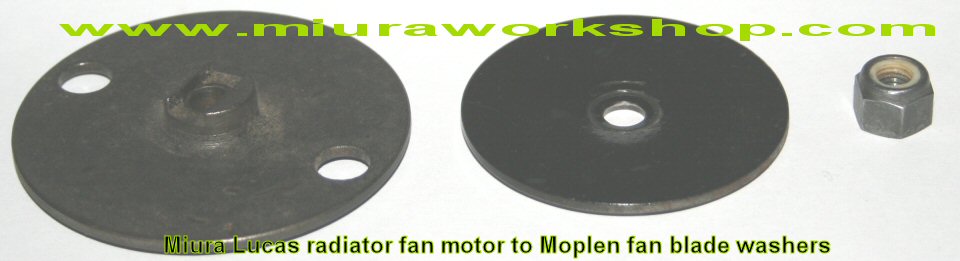

washer, adapter fan to Lucas motor

MW-03766 1703766

6.3 x 60 x 2 w/special machined boss area x 2 hole

steel, machined

washer, fan mount to motor

MW-03767 1703767

6.3 x 50 x 2

steel , flat

nut, fan blade to Lucas motor

MW-03833 1703833

1/4" x 28 NF tall Euro spec nylock

zC, yellow nylock

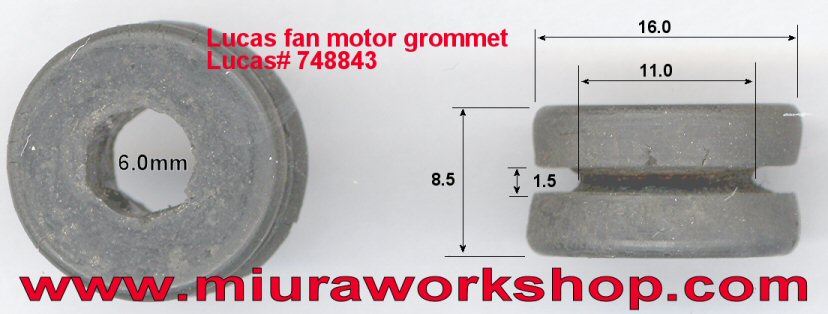

grommet, rubber, fan motor mount

GN-02519

Lucas #748843, Jaguar XKE # C18110

Lucas grommet

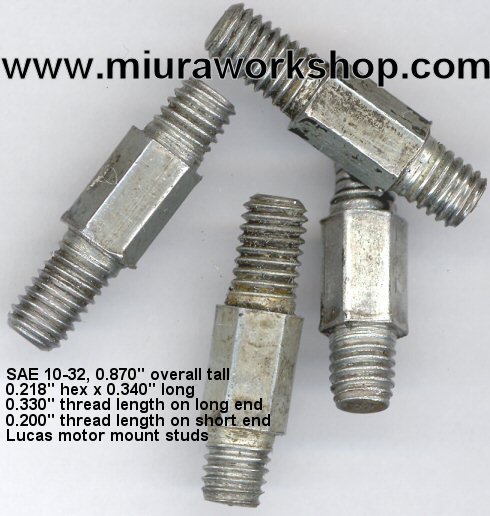

stud, Lucas motor mount

10-32 SAE x 0.216"hex, Jaguar XKE

zC, steel , Lucas

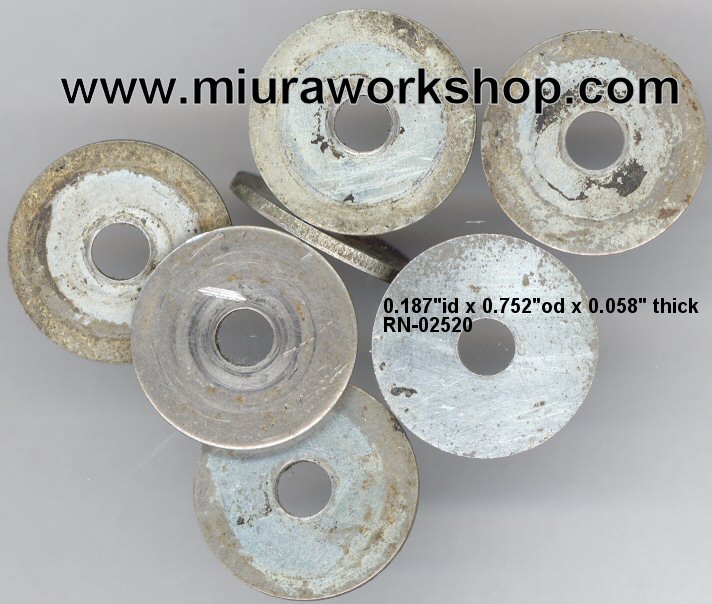

washer, Lucas mount - 16ea

RN-02520

.186" x .750" x .57"

zC, steel, SAE

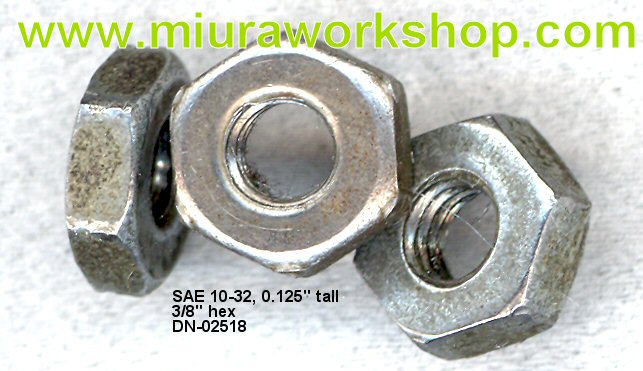

nut, Lucas mount , 10-32 - 8ea

DN-02518

10-32 SAE nut

zC, steel, SAE

hose, cooling connection, thermostat

MW-03768 1703768

40mm ID

spiral wrap

hose, cooling connection, main

MW-03762 1703762

30mm ID

spiral wrap

hose, cooling connection, expansion tank

MW-03772 1703772

20mm ID

hose, fuel filler connection

BI-03699

50mm ID

smooth

hose, heater inlet

BS-03797

12mm ID

possible 13mm

hose, heater oulet

BS-03799

12mm ID

possible 13mm

hose, oil vent vapor

MT-04383

hose, oil vent liquid

clamp, screw , hose radiator + water pump + oil vent

FN-01633

12 ea required, 12, 32-52

see page - tavfiltersbelts

clamp, screw, hose rear expansion tank +oil drain

FN-04241

6 ea required, 9, 18-30

clamp, screw, hose heater + heater valvola

FN-01415

6 ea required, 9, 14-24

clamp, screw, fuel filler hose

FN-03700

2 ea required, 12, 47-67

clamp. screw, fuel vent breather, brake res

FN-04053

6 ea required, 9, 9-17

radiator

MW-03597 1703597

$2000

thermostat, water

MW-02817 1702817

hex body, screw-in type,

350GT, 400GT2+2, Islero, Jarama, Espada
maybe Lancia Fulvia, Alfa Giulia

$175

valve, drain

MW-01905 1701905

links to cooling pieces -

FIM - Fabbrica Italiana Mettalurgica - http://www.fimbo.it/UK/lastoria.htm

notes from P400S parts book -
starting with motor #2706 the fan motors, brackets and support rubber were changed
MW-05166 round motor (9GM 54071553 B) replaces MW-01546
MW-05649 bracket replaces MW-03595
BS-05650 are added to mounts as the bolts were smaller and required this rubber bushing.

Feb 16, 05 - I dropped off my car last week at Bobileff's to deal with some fuel system issues (my carbs were spilling fuel all over, turns out one of the floats failed and sunk). While the car was there I asked Gary to pull the radiator to rod it out, as a preventative measure (the car exhibited some slight overheating last summer when I first got it). Today I got a call back from him saying that the radiator people indicated that the radiator core was shot. I now need to recore the radiator or find a new one/replacement. Anyone now where I can get a low interest 3rd on my house? (Just kidding). I will be calling GTC tomorrow morning to see if they have any replacements and cost. Any one have any other potential leads to a replacement? Thanks. ..Alberto

You can order one direct from lamborghini still. Part # is still good: miura cooling - radiator tav 13 1703597 Coolant Radiator $1,976.72 Dealers cost on this part is $1231.63, .."knjw1"

Ridicolous! There are radiator companies which will replace the core for about $500. I have a Miura owner here in Switzerland who had it replaced for that amount, also an Espada owner, both were amazed with the result. There are new modern cores which perform much better, the miura owner owns a company which makes the marks on the streets. This marking machines are runnning the whole day but with very low move, they have special cores for fork lifts, extremly efficient. Install those cores and you will never have any overheating again... Raymond

The thread about radiators and cooling made me remember that not everybody in the world knows about Peter Economoff. Peter owns and operates Peterbuilt Radiators in Santa Barbara. Over the years, he have proven to be a valuable resource whenever you have a radiator issue to deal with. The oil coolers on the 400GTs are extremely vulnerable to damage thanks to their location in the lower front of the car. One dip or oversized speed bump can ruin your day! I have had two oil coolers manufactured by Peter over the years. The are indistinguishable from original and very efficient. He has the capability to build from scratch, virtually any kind of radiator. Before it was virtually destroyed in the big Santa Barbara fire some years back, Jon Rand's SV had been equipped with a custom air conditioning system by Peter that was an engineering marvel. He is an extremely talented man.
For Espadas and most of the older cars, Peter can build a cross-flow, aluminum radiator that he says is 30% more efficient than stock. I have found over the years that his prices are very reasonable. Right now, he is re-manufacturing the two condensor units that the 400's equipped with air conditioner have shoe-horned behind the headlights. Mine were trashed and you can't get those units anywhere. And the original equipment units had a problem with tube breakage which Peter can fix. Here are his vitals:
Peterbuilt Radiators
306 E. Gutierrez Street
Santa Barbara, CA 93101
(805) 966-0527

http://www.bpnorthwest.com/.sc/ms/dd/Jaguar%20E-Type--Engine%20Electrical/8005/Cooling%20Fan%20Switch%20E-Type%2061-74

https://www.xksunlimited.com/xks/merchant.ihtml?id=107&step=2 - see items #22 and #23, fan motors as well

http://www.miuraworkshop.com
