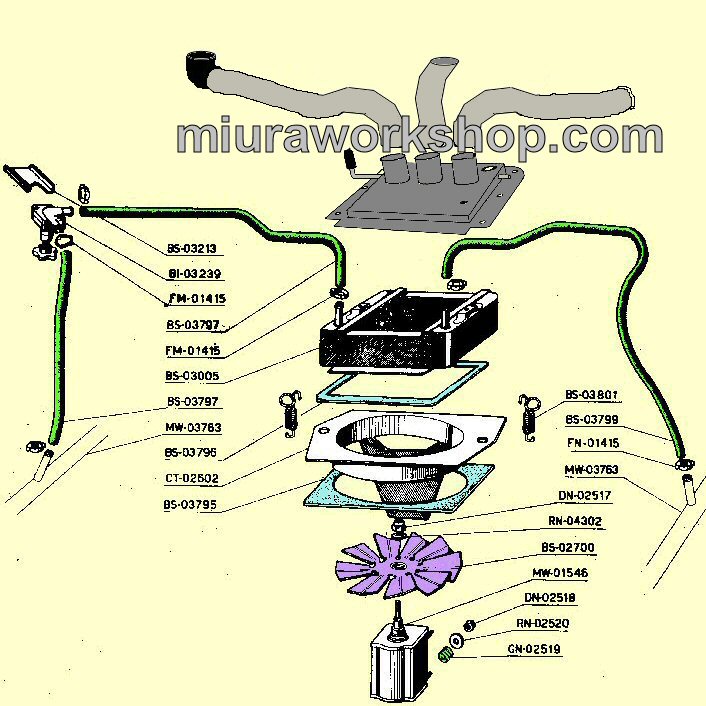

Description	Lamborghini part number	OEM details	notes
valve, heater flow	BI-03239	alloy, diaphram valve	Ferrari 250 and other Ferrari, Maserati 3500, Alfa Giulietta 750, 101 Giulietta Spider,  Sprint, Lambo 350, 400, Miura, Islero, Espada
clamp, hose - 6ea	FN-01415	9,14-24
hose, heater	BS-03797	12-13mm
hose heater	BS-03799	12-13mm
core, heater	BS-03005		embossing on both end tanks  - FIM, Forcellini, Bologna, (ITALY)
motor, heater fan	MW-01546	Lucas 3GM, #78378	exact same as rad fan, see cooling
gasket, core to fan mount	BS-03796		thin foam rubber sheet
gasket, fan mount to body	BS-03795		thin foam rubber sheet
plate, heater motor mount	CT-02502	sheet steel	hand brush painted gloss black
spring, heater  core/fan mount	BS-03801
blade, fan	BS-02700
rubber, motor mount isolation	GN-02519
duct, defroster, (not shown)		40mm id, fiber flex tube	dark grey

---

notes from P400S parts book - starting with chassis #3844 the heater motor and bracket were changed  to round style -
MW-05166 motor replaces MW-01546
CT-05643 bracket replaces CT-02602

---

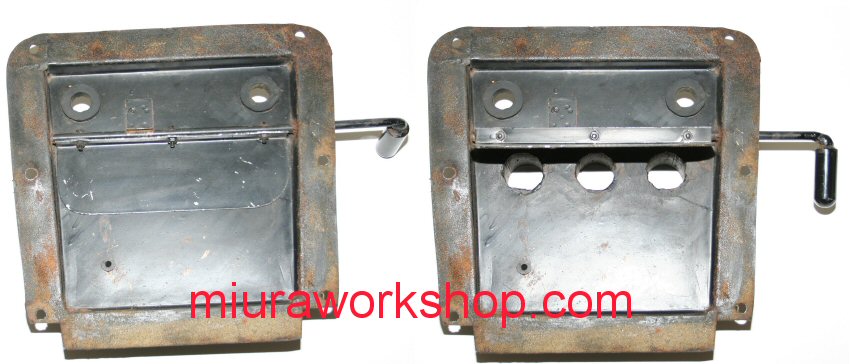

Defrost sheetmetal showing the flapper valve controlling the defrost flow on/off. Bullet handle pointing up - the defrost is off.....tilt it back and it opens the defrost. Very thin foam is used as a gasket material on the flapper and around the sheetmetal mount. You can see the grommeted holes for heater hose in/out and a small grommeted hole for the wire to the single speed Lucas heater motor.

item	graphic
heater defroster/defogger duct clamps
